CNC S-20

CNC S-20
CNC S-20
CNC S-20
  • Technical Features

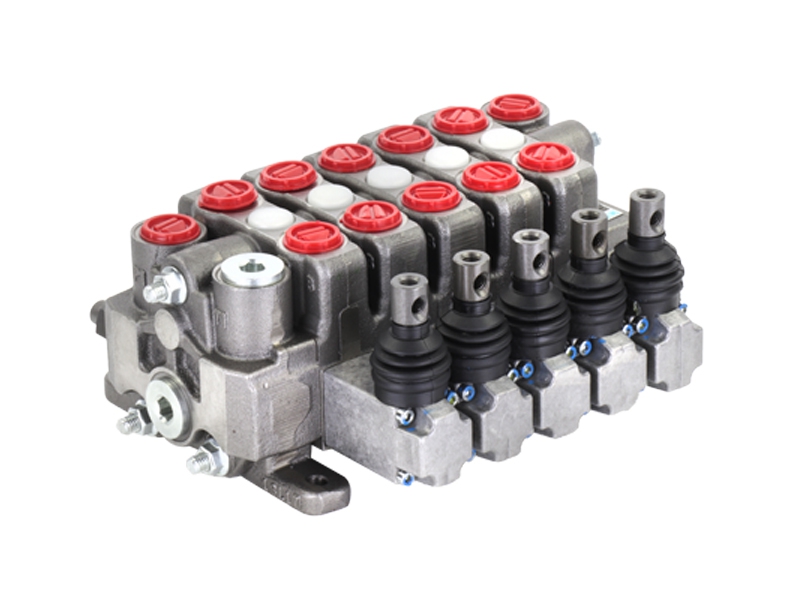

           CNC S-20 is a robust control valve for 150 lpm nominal flow rate and up to 315 bar working pressure.

           The valve is designed for high performance for open and closed centre hydraulic systems.


  • Valve is equipped with an adjustable main relief valve.
  • Avaliable in parallel (in standard), series, tandem circuit.
  • Load Hold Check valves in each section.
  • Auxiliary Valves.
  • Wide range of spool options.
  • Interchangable  Ø19 mm spools.
  • Carry-over and closed center option.
  • Load Sense Option.



           Manuel, Pneumatic, Electro-Pneumatic, Hydraulic, Electro-Hydraulic, Inlet Proportional, Mechanical Joystick and Remote Cable Control.
